Timber conveyor machine
Timber conveyor machine is used in conjunction with a band saw carriage and is placed behind the band saw. The rolling rollers receive the lumber cut by the band saw, and the knife holder assembly assists workers in transporting the lumber to the next processing equipment.
Timber conveyor machine significantly saves manpower, integrates perfectly with upstream and downstream processes, saving time and effort, and greatly improving production efficiency. The automatic board handling machine can be used in conjunction with other production equipment to achieve automated operation of the entire production line. It can be seamlessly integrated with cutting machines, multi-blade saws, and other equipment to achieve efficient automation of the production process.
Product Advantages:
- High safety: The transport platform is equipped with two types of rollers, one of which has a conical flared shape. The two types of rollers are installed alternately. This design allows for timely adjustment of the wood panel’s transport direction, preventing the panels from sliding off the equipment during transportation.
- Double efficiency, improved production efficiency: It can transport two panels at a time, helping workers improve work efficiency.
- Strong adaptability: It has a retractable and movable frame at the rear, which can adjust the position of the panels according to the specific site conditions.
- Precise transportation: A limit switch is installed at the end of the transport platform to instantly sense the position of the wood being transported.
- Stable operation: The cutter head assembly uses a toothed chain, ensuring a stable and secure grip when lifting and transporting wood.
Product Specifications

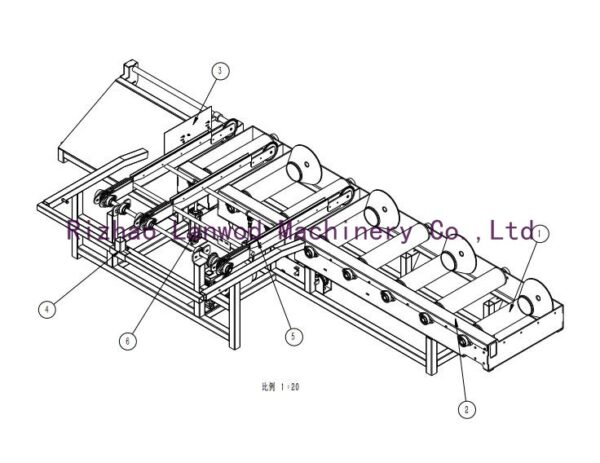

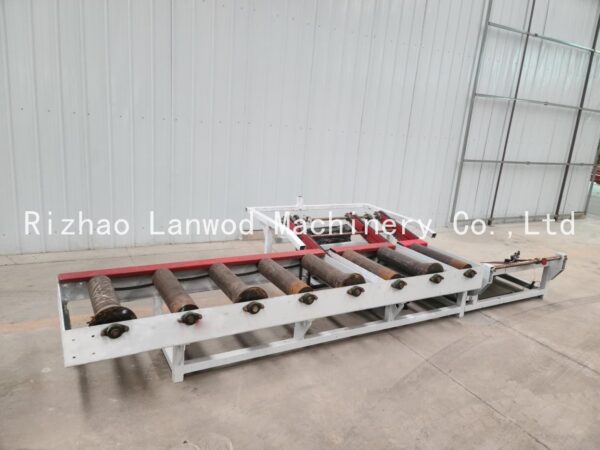

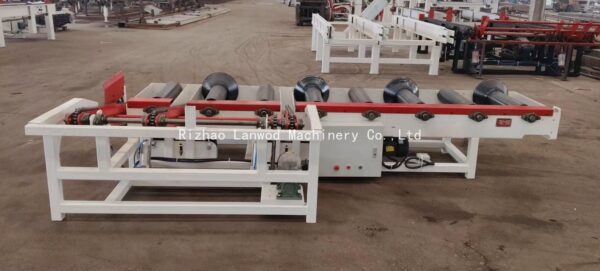

This product is available with two or three blade holders; the example shown in the image is the three-blade holder model.
The length of the conveyor table can also be adjusted later, with connectors available in lengths of 60cm, 80cm, 100cm, 120cm, and 140cm. The connector size is customized according to customer requirements.
The table height can also be adjusted according to specific requirements.
